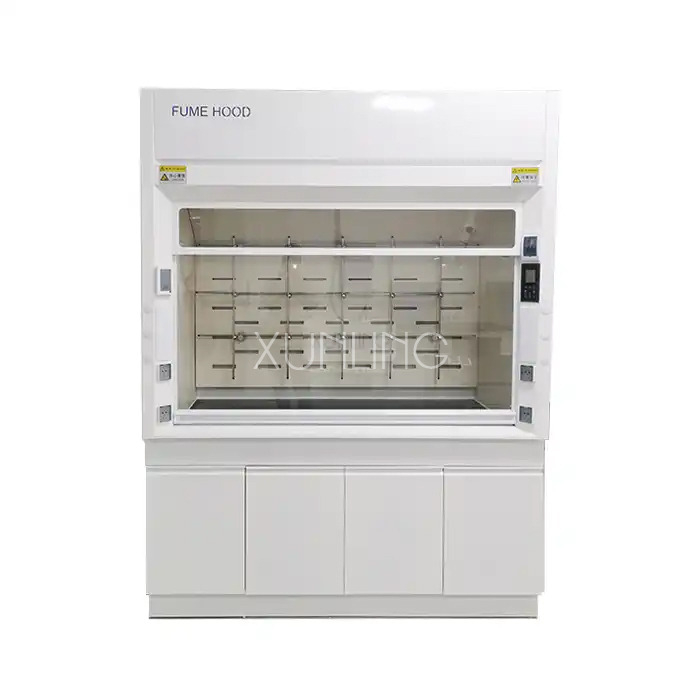

| Ducted Fume Hood is a common safety equipment in laboratories, mainly used to capture and remove harmful gases, vapors and particles generated during the experiment. Ducted Fume Hood discharges the exhaust gas generated during the experiment to the outdoors or designated safe areas through an external piping system, avoiding the retention and diffusion of harmful gases in the laboratory. | |||||||||
| PDF Export | |||||||||






Are you trying to find trustworthy lab safety equipment? We at Xi'an Xunling Electronic Technology Co., Ltd. recognize how vital a secure and effective lab environment is. We are pleased to present our range of premium ducted fume hoods, which are intended to safeguard your researchers and preserve a hygienic work environment. Our products are designed to efficiently remove dangerous fumes, vapors, and particles from labs of all sizes, creating a safer environment for your vital work.
Our dedication lies in offering all-inclusive solutions that surpass industry norms. With years of experience, we offer peace of mind in addition to equipment sales.Whether you're setting up a new lab or upgrading an existing facility, choosing Xunling means choosing a partner dedicated to quality and safety.
Our Ducted Fume Hood is manufactured in compliance with international standards, including ISO and CE, ensuring you are receiving the highest quality and safest equipment available. We are also familiar with the requirements of standards such as NFPA. For clients in developing regions, the combination of our product performance, adherence to internationally recognized certifications, and cost-effective solutions provides strong value.
Interested in improving safety and efficiency in your lab with the Ductless Fume Hood? Contact us at xalabfurniture@163.com for more information or to request a quote. Let Xi'an Xunling Electronic Technology Co., Ltd be your partner in creating a safer laboratory environment.
| Parameter | Specification | ||||
|---|---|---|---|---|---|
External Dimension W*D*H | 1200*850*2350 mm | 1500*850*2350 mm | 1800*850*2350 mm | Customized | |
Internal Dimensions W*D*H | 960*660*1180 mm | 1260*660*1180 mm | 1560*660*1180 mm | Customized | |
| Airflow Volume | 1300 m3/h | 1700 m3/h | 2100 m3/h | Customized | |
| Net weight (kg) | 182 | 218 | 249 | Customized | |
| Airflow Velocity | 0.3-0.6 m/s | ||||
| Front Sash Opening | 760 mm | ||||
| Exhaust vent of fume hood | Diameter 250mm or Compatible with standard ducting systems | ||||
| Material | High-quality corrosion-resistant galvanized steel | ||||
| Noise Level | ≤60 dB | ||||
| Lighting | (Integrated LED lighting) | ||||
| Power Supply | 220V, 50Hz or customizable | ||||
| Optional Features | Gas, water, and electricity fittings available | ||||
Our Ducted Fume Hood aren't just about containment; they're about providing a comprehensive safety solution. Here's what sets them apart:
Superior Airflow Management: Our hoods are meticulously designed to create a consistent and reliable airflow, efficiently capturing and removing hazardous airborne substances from the work area. This is vital for the safety of your personnel and the integrity of your experiments.
Robust Construction: We use high-quality, corrosion-resistant materials to ensure long-lasting performance, even in the harshest laboratory environments. Our construction stands up to the rigors of daily lab work.
Customizable Options: Recognizing that each lab has unique needs, we offer customizable sizes, materials, and configurations. This flexibility ensures our fume hoods are a perfect fit for any laboratory, whether it's a large facility or a smaller research lab.
Energy-Efficient Design: Our hoods are designed with energy efficiency in mind, helping you reduce operating costs without compromising performance. This is good for both your budget and the environment.
User-Friendly Controls: Intuitive controls and digital displays make monitoring and adjusting airflow easy and straightforward. Simple operation is key to day-to-day use.
Low Noise Operation: Our advanced engineering reduces noise, creating a more comfortable and focused environment for your team. Reduced noise helps improve the working atmosphere.
Our ducted fume hood is perfect for a wide range of laboratory applications, including:
Chemical Research: Safely handle volatile chemicals, acids, and solvents during experiments.
Pharmaceutical Research: Maintain a clean environment while handling potent drugs and compounds.
Materials Science: Effectively remove harmful dust and particles when working with various materials.
Biological Research: Control biological agents and reduce the risk of cross-contamination.
General Laboratory Use: Provide a reliable safety barrier in any laboratory setting where hazardous substances are used.
Q1: Can the ducted fume hood be customized to fit my lab space?
A1: Yes, we offer custom sizes and configurations to meet your specific needs.
Q2: What type of maintenance is required?
A2: Regular cleaning and filter replacement are usually required. Our team can provide detailed maintenance guidelines and training.
Q3: Can you help with installation?
A3: Yes, we offer professional installation services.
Q4: What is the lead time for a customized order?
A4: Lead time varies depending on the customization requirements. Please contact us for a specific estimate.
