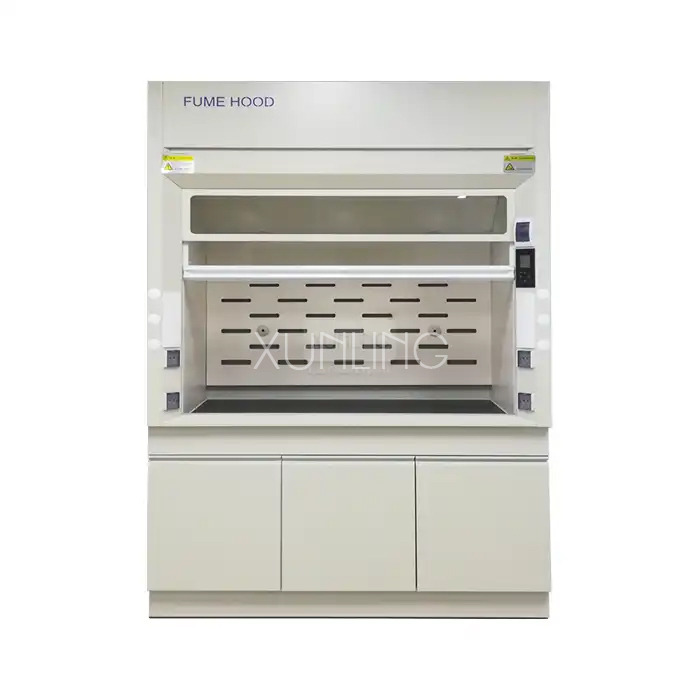

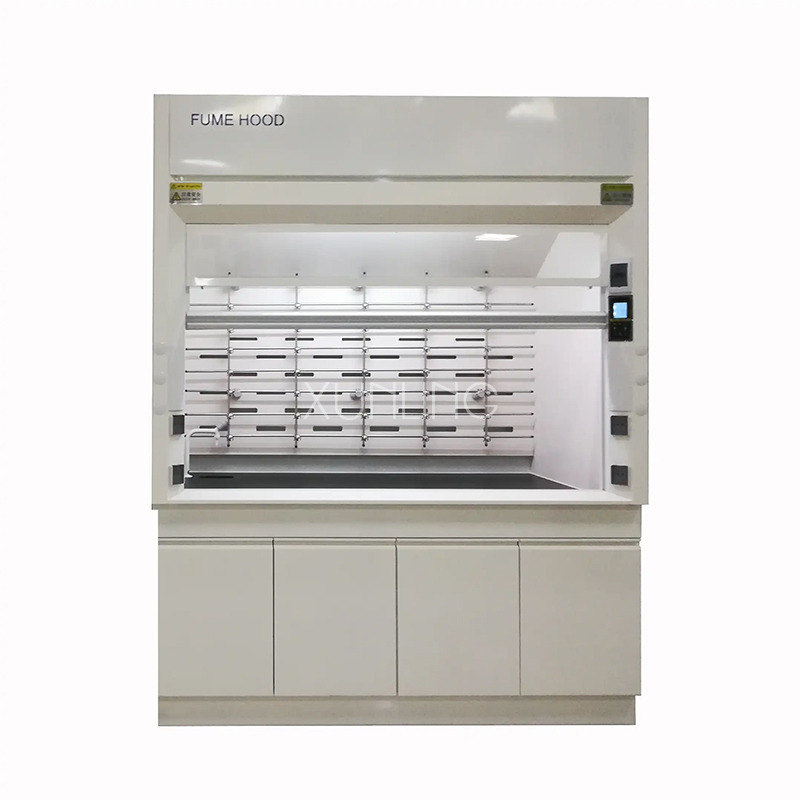

Galvanized Steel Basic Fume Hood φ250

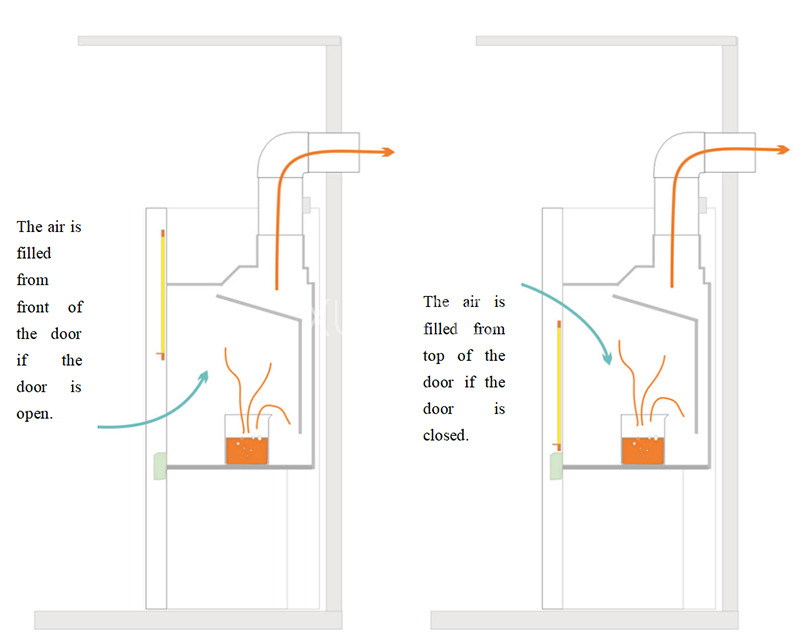

Exhaust air direction

Galvanized Steel Basic Fume Hood Application

Our Galvanized Steel Basic Fume Hood is ideal for various laboratory settings, including:

Research Laboratories: Ensuring a safe and controlled environment for scientific research.

Educational Institutions: Providing a secure workspace for students and educators.

Industrial Laboratories: Enhancing safety and efficiency in industrial research and development.

Healthcare Facilities: Protecting healthcare workers and patients from hazardous substances.

Contact Us

For more information or to place an order, please contact us at xalabfurniture@163.com. Our team is here to assist you with all your laboratory equipment needs.

By choosing Xunling Labcleantech, you are investing in quality, safety, and efficiency. Let us help you create a cleaner, safer, and healthier laboratory environment with our Galvanized Steel Basic Fume Hood.

Sn.	Description	Specification
1	External dimension (mm)	1200*850*2350	1500*850*2350	1800*850*2350	Customized
2	Internal dimension (mm)	960*660*1180	1260*660*1180	1560*660*1180	Customized
3	Opening height of the window (mm)	760			Customized
4	Air quantity (m3/h)	1300	1700	2100	Customized
5	Exhaust diameter (mm)	φ250			Customized
6	Face velocity (m/s)	0.3~0.5
7	Noise (dB)	Less than 65
8	Power input voltage (V)	AC 110V / 220V 50Hz
9	Current and power of power socket	10A 2200W
10	Net weight (kg)	182	218	249	Customized

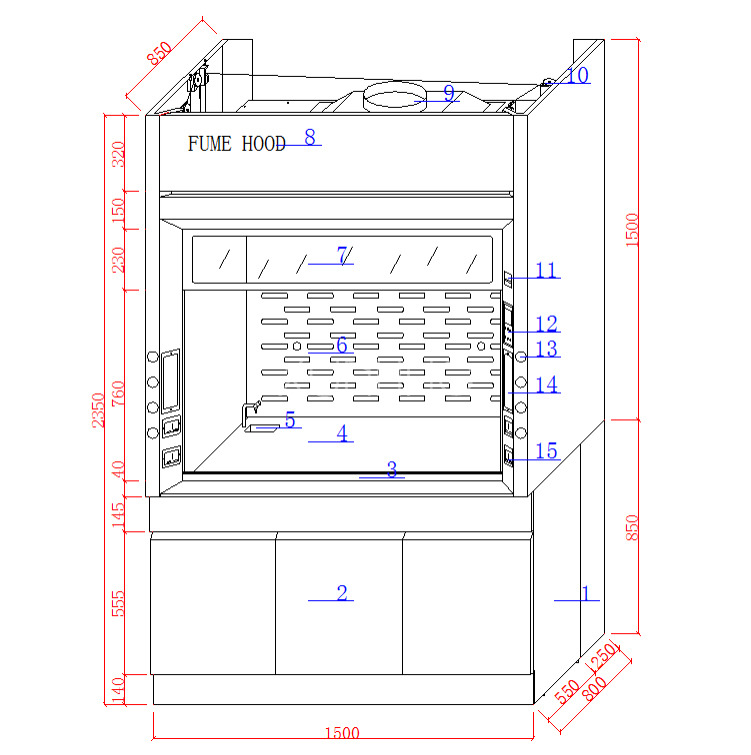

1. Lower hood

2. Door panel of lower hood

3. Glass door and PP handle (5mm thick tempered glass embedded)

4. Table top (optional)

5. PP small cup and single-outlet water tap (optional)

6. Guide plate (with exhaust guiding hole)

7. Fixed small view window (5mm thick tempered glass embedded)

8. Front steel plate (LOGO is customized)

9. Exhaust port of fume hood (diameter of 250mm)

10. The vertically lifting/lowering tempered rope and pulley assembly of glass door.

11. Circuit breaker shall be additionally provided (PP plastic protective casing)

12. LCD control panel (power, fan, lighting, damper +, damper -, standby, confirm, set)

13. Functional device reserved hole (round hole with diameter of 42mm)

14. Maintenance plate (plastic)

15. （10A）Socket (5-hole 10A)

Material: High-quality cold-rolled steel plates

Surface Treatment: Pickling and phosphating, electrostatically sprayed with epoxy resin powder

Dimensions: Customizable to fit your laboratory needs

Airflow Control: Stable and efficient

Noise Level: Low, ensuring a quiet working environment

Fire Protection: Superior performance to minimize fire risks

Corrosion Resistance: Waterproof, acid, and alkali resistant

Our product meets international certifications and standards, including:

ISO Certification: Ensuring quality management and environmental standards.

CE Certification: Complying with European safety, health, and environmental protection standards.

ASHRAE 110 Compliance: Meeting the safety standard ASHRAE 110.

SEFA Compliance: Complying with Scientific Equipment and Furniture Association Requirements.

Q: What sizes are available for the Galvanized Steel Basic Fume Hood?
A: We offer customizable sizes to fit the specific needs of your laboratory.

Q: How does the fume hood ensure safety in the laboratory?
A: Our fume hood provides efficient ventilation, superior fire protection, and corrosion resistance, ensuring a safe and compliant laboratory environment.

Q: What kind of maintenance is required for the fume hood?
A: Regular cleaning and periodic inspections are recommended to maintain optimal performance. Our after-sales service team is available to assist with any maintenance needs.

Q: Can the fume hood be used in educational institutions?
A: Yes, our fume hood is ideal for educational institutions, providing a safe workspace for students and educators.
