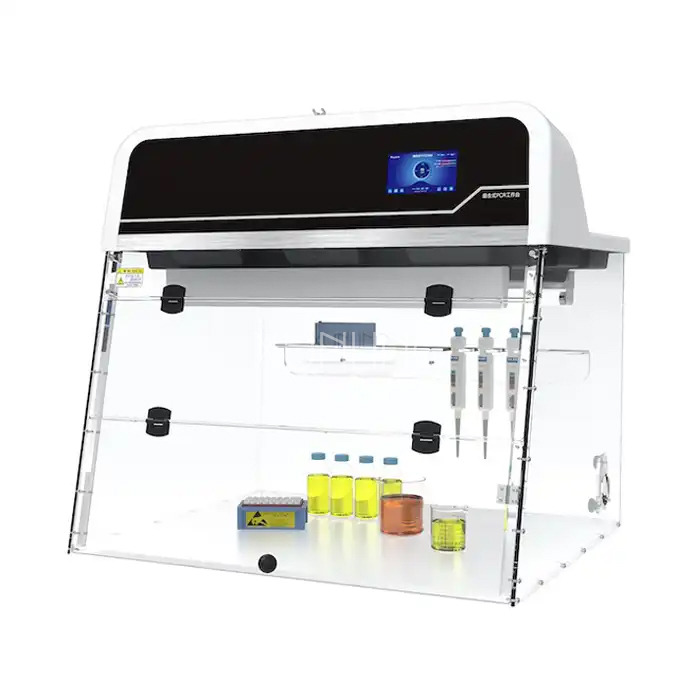

| The PCR workstation is a device that integrates multiple functions in one, designed to provide a sterile, pollution-free and easy-to-operate environment for PCR experiments. It usually includes a closed operating area, an efficient air filtration system, an ultraviolet disinfection device, and necessary experimental tools and equipment.Main features1.Sterile environment: The PCR workstation can effectively remove particles and microorganisms in the air through an efficient air filtration system, providing a relatively sterile environment for PCR experiments.2.Anti-pollution: The workstation usually adopts a negative pressure design to prevent outside air and pollutants from entering the operating area. At the same time, the ultraviolet disinfection device can disinfect the operating area before and after the experiment to further reduce the risk of contamination.3.Convenient operation: The PCR workstation is usually equipped with an easy-to-use control panel and experimental tools to facilitate operators to operate and monitor experiments.4.Versatility: In addition to conducting PCR experiments, the PCR workstation can also be used for other experimental operations that require a sterile environment, such as DNA/RNA extraction, sample processing, etc. | |||||||||
| PDF Export | |||||||||






A PCR workstation is essential for maintaining a sterile and controlled environment for conducting PCR experiments and related laboratory tasks. It is designed to safeguard processes from contamination, ensuring the reliability and accuracy of results. Whether you work in pharmaceuticals, biotechnology, food safety, or electronic manufacturing, a workstation enhances efficiency and compliance with industry standards.
For more information or to request a quote about the PCR Workstation, please contact us:
Email:xalabfurniture@163.com
Let us help you create a cleaner, safer, and more efficient laboratory environment today!
Model | PCRHE80S (Standard Height) | PCRHE80ST (Tall Version) | PCRHE120S (Standard Height) | PCRHE120ST (Tall Version) | |
External Size W*D*H | 820*650*740 mm | 820*650*990 mm | 1220*650*740 mm | 1220*650*990mm | |
Internal size W*D*H | 790*640*450 mm | 790*640*700 mm | 1190*640*450 mm | 1190*640*700 mm | |
Overall structure | Ready to use, no need assemble onsite, no need ductwork | ||||
Weight | 40Kg | 50Kg | 60Kg | 70Kg | |
Main Materials | Polycarbonate and polypropylene | ||||
Max Purified Air Volume | 5.6 m³/min | 11.2m³/min | |||
Airflow Rate & Blower speed | Adjustable | ||||
Low air flow Alarm | visually and audibly | ||||
Blower / Fan | EC Axial Flow Fan*1 | EC Axial Flow Fan*2 | |||
Lighting | LED, 8W, 300 lux | LED, 16W, 600lux | |||
UV Light | 254 nm, 15W | 254 nm, 30W | |||
Pre Filter Efficiency | >95% at aerosol and particulates of 0.5μm (microns)diameter or above | ||||
HEPA Filter Efficiency | >99.999% at aerosol and particulates of 0.3μm (microns)diameter or above | ||||
Cleanliness Level | ISO 5 and FS209E 100 | ||||
Monitoring & Alarming | Temperature, Humidity, Filters loading, and UV lamp status, With visible and audible alarm | ||||

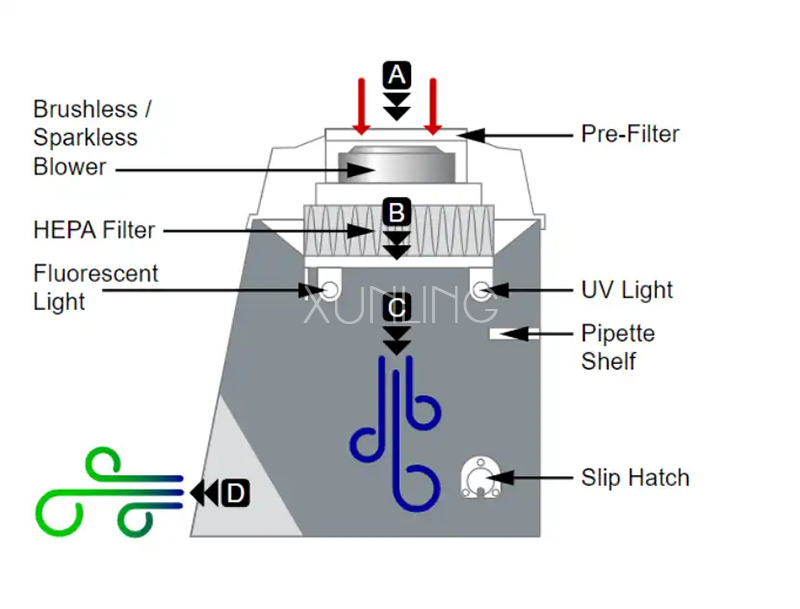

The workstation integrates advanced features to create a safe, clean, and user-friendly laboratory environment. Its HEPA filtration system ensures maximum protection from airborne contaminants, while UV disinfection provides thorough sterilization. This workstation supports a variety of tasks, including PCR experiments, DNA/RNA extraction, and sample processing, making it versatile for laboratories across industries.
The Workstation is engineered to provide a highly efficient, sterile environment for critical laboratory procedures. Key features include:
Sterile Environment: The workstation is outfitted with a state-of-the-art air filtration system, designed to effectively remove airborne contaminants, ensuring the utmost cleanliness and safety for sensitive PCR experiments.
UV Disinfection: A powerful UV sterilization feature offers both pre- and post-experiment disinfection, minimizing the risk of cross-contamination and maintaining the integrity of experimental results.
Ease of Use: Featuring an intuitive, user-friendly control panel, the workstation allows for seamless operation with programmable settings that enable precise adjustments, enhancing both workflow efficiency and accuracy.
Durability: Constructed from high-quality materials, the workstation is built for long-term use, offering exceptional reliability and ease of maintenance, making it a sustainable investment for any laboratory environment.
Customizable Design: With flexible configuration options, the workstation can be tailored to meet the specific needs of your laboratory, accommodating unique workflows and ensuring optimal performance for diverse applications.
The PCR Workstation is a versatile tool designed to meet the needs of various industries requiring precise, sterile conditions for critical processes. Its applications include:
Pharmaceutical Industry: Provides a controlled, aseptic environment crucial for the development and manufacturing of pharmaceuticals, ensuring the safety and efficacy of drug production processes.
Biotechnology Companies: Supports advanced genetic research and cell culture applications by maintaining a contamination-free space, optimizing experimental accuracy and reproducibility in cutting-edge biotechnological innovations.
Hospitals & Medical Institutions: Essential for sterile preparation of medications, bacterial cultures, and diagnostic tests, the workstation ensures infection control and reliable, contaminant-free results in clinical settings.
Food & Beverage Industry: Used for microbial testing and quality control, the workstation helps maintain high standards of hygiene and safety in food production, ensuring product integrity and compliance with regulatory standards.
Electronic Manufacturing: Protects sensitive electronic components from static electricity and airborne particulates, ensuring high-quality assembly and reducing the risk of defects during manufacturing processes.
We are committed to your satisfaction:
Installation & Training: Expert setup and hands-on training for your team.
Maintenance & Repairs: Comprehensive service packages to ensure optimal performance.
Customer Support: 24/7 assistance for troubleshooting and inquiries.
Q: What is the primary purpose of the product?
A: It ensures a sterile environment for PCR experiments, reducing the risk of contamination and ensuring reliable results.
Q: Can the PCR workstation be customized?
A: Yes, we offer customizable dimensions and configurations to suit specific laboratory requirements.
Q: How often should the filters and UV lamps be replaced?
A: HEPA filters typically last 12-18 months, while UV lamps should be replaced every 6-12 months for optimal performance.
