Laboratory ventilation installation specifications and pit avoidance guidelines

#Installation specifications and pit avoidance guidelines for laboratory exhaust ducts

The laboratory exhaust system is an important component of laboratory infrastructure, and its design and installation quality directly affect the safety, environmental quality, and accuracy of experimental results of the laboratory. This article will provide a detailed introduction to the installation specifications and common issues of laboratory exhaust ducts, helping to avoid possible errors during the installation process.

##1 Installation Specification for Laboratory Exhaust Ducts

### 1. Design specifications

####1.1 Airflow Calculation

-According to the standard: Calculate the required air volume based on the laboratory's usage requirements and relevant standards (such as the "Code for Acceptance of Construction Quality of Ventilation and Air Conditioning Engineering" GB 50243).

-Calculation method: The air volume is usually calculated using the air exchange rate method or pollutant emission method to ensure that the exhaust system can effectively remove harmful gases and particulate matter.

####1.2 Pipeline Material Selection

-Corrosion resistance: Laboratory exhaust ducts should be made of corrosion-resistant materials such as PVC, PP, stainless steel, etc. The specific material should be selected according to the chemical properties of the emitted gas.

-High temperature resistance: If the exhaust gas temperature is high, high temperature resistant materials such as galvanized steel or stainless steel should be selected.

####1.3 Pipeline layout

-* * Shortest Path * *: The pipeline should adopt the shortest path as much as possible, reducing bends and branches to reduce wind resistance and noise.

-* * Avoid Crossing * *: The pipeline layout should avoid crossing with other pipelines to ensure ease of installation and maintenance.

### 2. Installation specifications

####2.1 Pipeline Connection

-Sealing performance: Sealing glue or gasket should be used at the pipeline connection to ensure that there is no air leakage at the connection.

-* * Flange connection * *: For large-diameter pipelines, flange connection should be used and fastened with bolts to ensure a secure connection.

####2.2 Bracket Installation

-* * Spacing Requirements * *: The installation spacing of brackets should meet the design requirements. Generally, the spacing between horizontal pipeline brackets should not exceed 3 meters, and the spacing between vertical pipeline brackets should not exceed 4 meters.

-* * Fixing method * *: The bracket should be firmly fixed to the building structure to avoid pipeline displacement due to vibration or wind pressure.

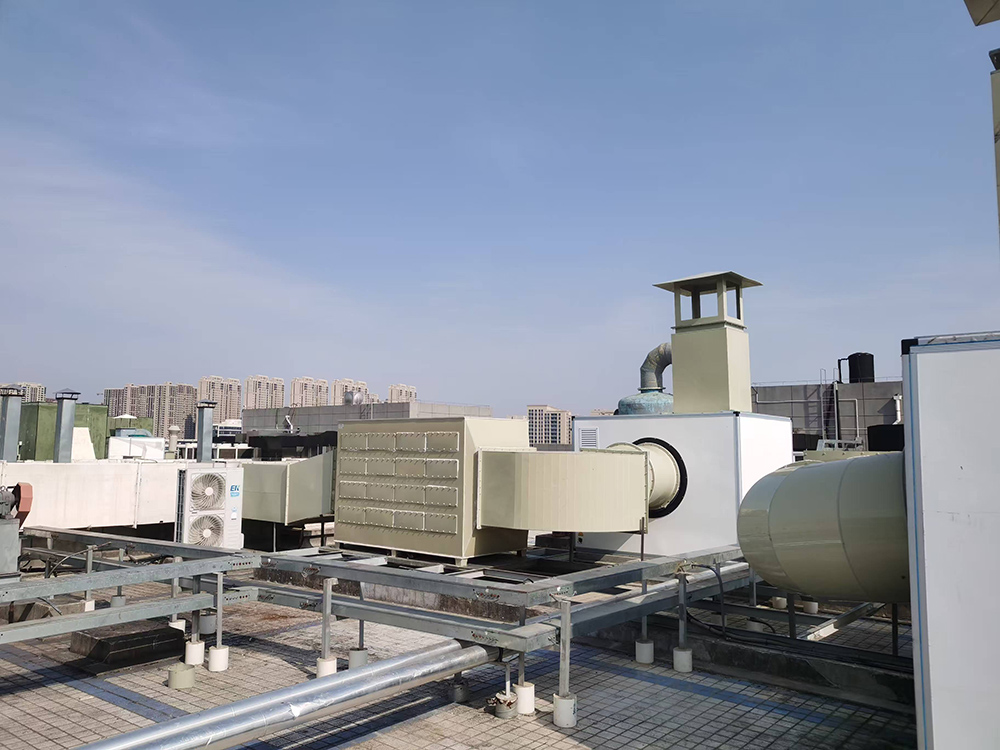

####2.3 Fan installation

-Location selection: The fan should be installed at the end of the exhaust system to ensure effective ventilation.

-Shock absorption measures: The fan base should be equipped with shock pads or shock absorbers to reduce vibration and noise during operation.

####2.4 Installation of exhaust outlet

-Location selection: The exhaust outlet should be set at a high place in the laboratory to avoid the accumulation of harmful gases indoors.

-* * Protective measures * *: The exhaust outlet should be equipped with a protective net to prevent foreign objects from entering the pipeline.

### 3. Testing and Debugging

####3.1 Airflow detection

-* * Testing method * *: Use an anemometer or air volume hood to measure the air volume at each exhaust outlet to ensure it meets the design requirements.

-Adjustment method: By adjusting the speed of the air valve or fan, the air volume at each exhaust outlet can be balanced.

####3.2 Noise detection

-* * Testing method * *: Use a noise meter to detect the operating noise of fans and pipelines, ensuring compliance with laboratory noise standards.

-* * Noise reduction measures * *: If the noise exceeds the standard, measures such as installing mufflers and adding sound insulation materials can be taken to reduce noise.

####3.3 Air leakage detection

-* * Test method * *: use smoke or foam detector to test the tightness of the pipe connection to ensure no air leakage.

-Repair method: If air leakage is found, it should be repaired in a timely manner and the connection should be resealed.

##2 Common problems and pit avoidance guide for laboratory exhaust duct installation

### 1. unreasonable design

####1.1 Insufficient air volume

-Problem description: The exhaust system is designed with insufficient air volume, resulting in ineffective removal of harmful gases in the laboratory.

-* * Pit Avoidance Guidelines * *: During the design phase, the laboratory's usage requirements and the properties of the emitted gases should be fully considered to ensure accurate calculation of air volume.

####1.2 Unreasonable pipeline layout

-Problem description: The pipeline layout is too complex, with too many bends and branches, resulting in increased air resistance and poor exhaust effectiveness.

-* * Pit Avoidance Guide * *: Try to use the shortest path possible, reduce bends and branches, and ensure a reasonable pipeline layout.

### 2. Installation is not standardized

####2.1 Pipeline connection not sealed

-Problem description: The sealing at the pipeline connection is not tight, resulting in air leakage and affecting the exhaust effect.

-* * Pit Avoidance Guide * *: During installation, it is necessary to strictly follow the specifications to ensure that the pipeline connections are well sealed.

####2.2 The bracket installation is not firm enough

-Problem description: The bracket is not securely installed, causing the pipeline to shift or sag, affecting the normal operation of the exhaust system.

-* * Pit Avoidance Guide * *: The bracket should be firmly fixed to the building structure to ensure a secure installation.

### 3. Inadequate detection and debugging

####3.1 Uneven Airflow

-Problem description: The air volume of each exhaust outlet is uneven, with some exhaust outlets having excessive or insufficient air volume, which affects the exhaust effect.

-* * Pit Avoidance Guide * *: During the debugging phase, an anemometer or air hood should be used to detect the air volume at each exhaust outlet, and the air volume should be balanced by adjusting the speed of the air valve or fan.

####3.2 Excessive noise

-Problem description: Excessive noise from fan or pipeline operation affects the normal use of the laboratory.

-* * Pit Avoidance Guide * *: During the debugging phase, a noise meter should be used to detect noise. If the noise exceeds the standard, noise reduction measures should be taken.

####3.3 Leakage phenomenon

-Problem description: There is air leakage at the pipeline connection, which affects the exhaust effect.

-* * Pit Avoidance Guide * *: Smoke or foam detector shall be used to test the tightness of the pipe connection during the commissioning stage, and if air leakage is found, it shall be repaired in time.

##3 Summary

The installation of laboratory exhaust ducts is a complex and important project that involves multiple stages such as design, installation, testing, and commissioning. Only by strictly following the regulations can the safe and efficient operation of the exhaust system be ensured. Through the introduction in this article, we hope to help readers understand the installation specifications and common problems of laboratory exhaust ducts, avoid errors during installation, and ensure the safety of the laboratory and the accuracy of experimental results.
